carrousel rotational molding machine for plastic water tank and water pipe

FOB Reference Price:Get Latest Price
$47,000.00 - $395,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
customized
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
XUTIAN
Voltage:
customized
Power(W):
customized
Dimension(L*W*H):
optional
Weight:
customized, customized
Certification:
ISO 9001
Warranty:
12 Months, 1 year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Name:
Rotomolding Machine
Delivery Time:
WITHIN 90 DAYS
Color:
Gray
Function:
Plastic Pproducts Making
Material:
steel,iron,aluminium
Type:
Automatic
Product Type:
Mass Production
Product Certification Verified
CE Certified.
Valid from 2016-05-13 until 2021-05-12
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box package
Port
NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

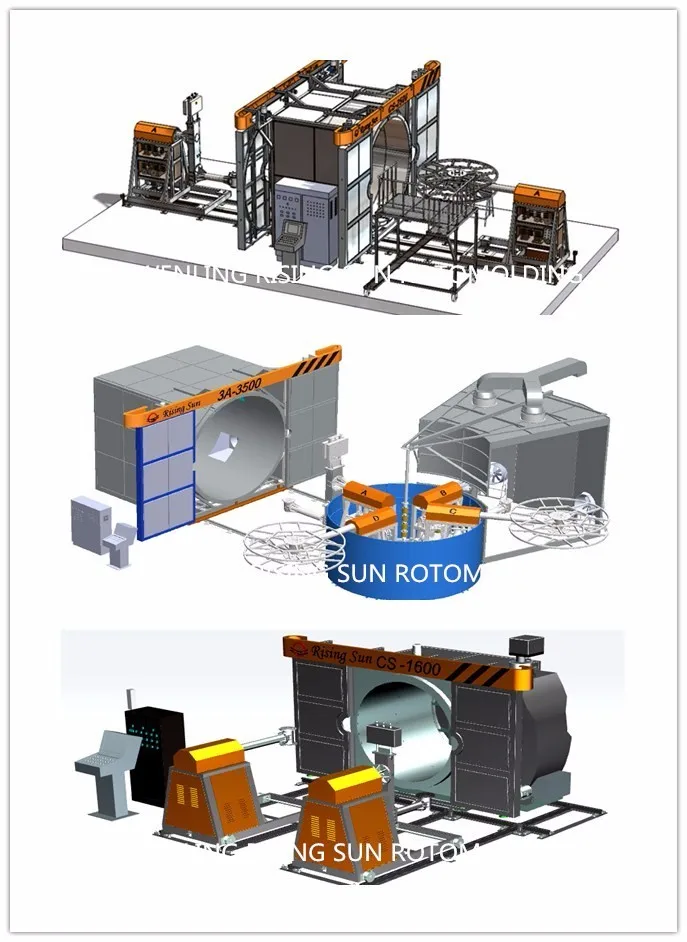

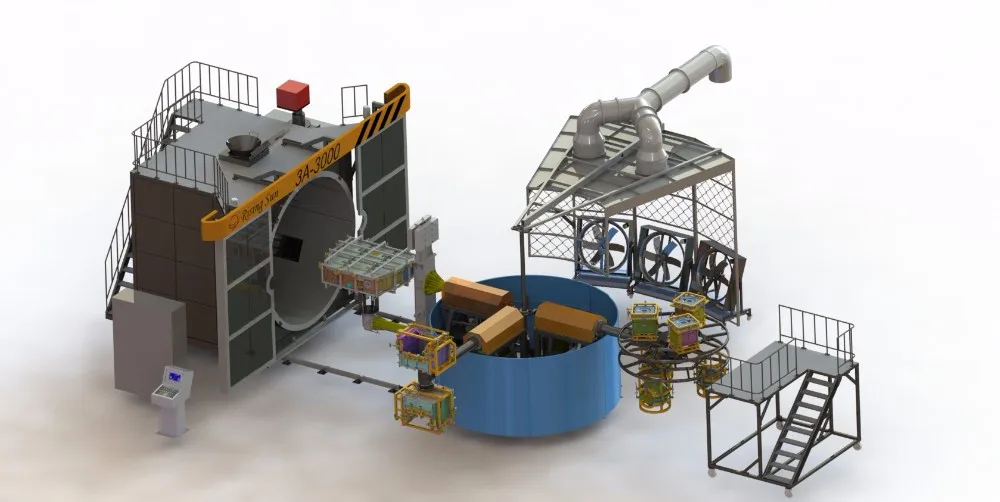

Rotational molding machine

Rotational molding machine

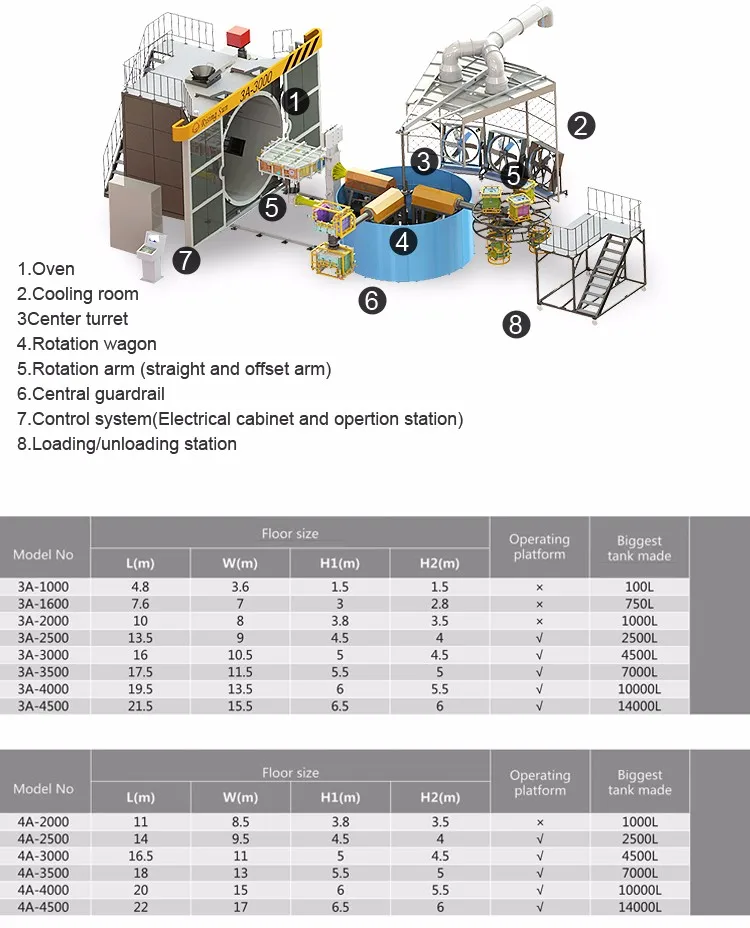

The shuttles are linear installations featuring a central oven and 1 or 2 carriages which, on request, are entered into the oven for cooking and then removed to a cooling station for cooling and extraction of the moulded parts. These installations require only limited operating space while providing increased loading capacity from the mould-holding arms which are supported at the two ends.

Oven having a unique shape to reduce the air volume around the moulds to the minimum and to achieve high efficiency with low energy consumption. Oven structure in robust steel profiles, with high thermal insulation attained through interposition of high density rock wool fibers.

 The most economical way of exploiting all the advantages offered by this technology. Specifications:

2 - 3 stations: an oven and 1 or 2 cooling and loading/unloading stations;

Open cooling stations with ground level fans;

High capacity loading carriages;

Interchangeable straight or crank arms;

Burner powered with different fuels;

PLC control system
